The TH is a conventional thick-walled tubing pump. Designed to be directly coupled to the bottom of the tubing string and run into the well as a unit, it eliminates the need for a separate anchoring system. With a simple structure, a wide range of available bore sizes, and high displacement, it is specifically engineered for high-volume lifting in medium and shallow wells. Featuring a thick-walled, pressure-rated barrel, it offers excellent wear and deformation resistance, making it ideal for the heavy-duty lifting demands of high-yield wells. It delivers stable lifting efficiency and superior sealing performance with minimal risk of leakage. The straightforward installation and commissioning process makes it perfect for large-scale deployment in high-production blocks. Easy to maintain with intuitive troubleshooting, this pump is tailored for conventional high-yield wells without complex downhole conditions, serving as the industry-standard equipment for lifting in prolific oilfields.

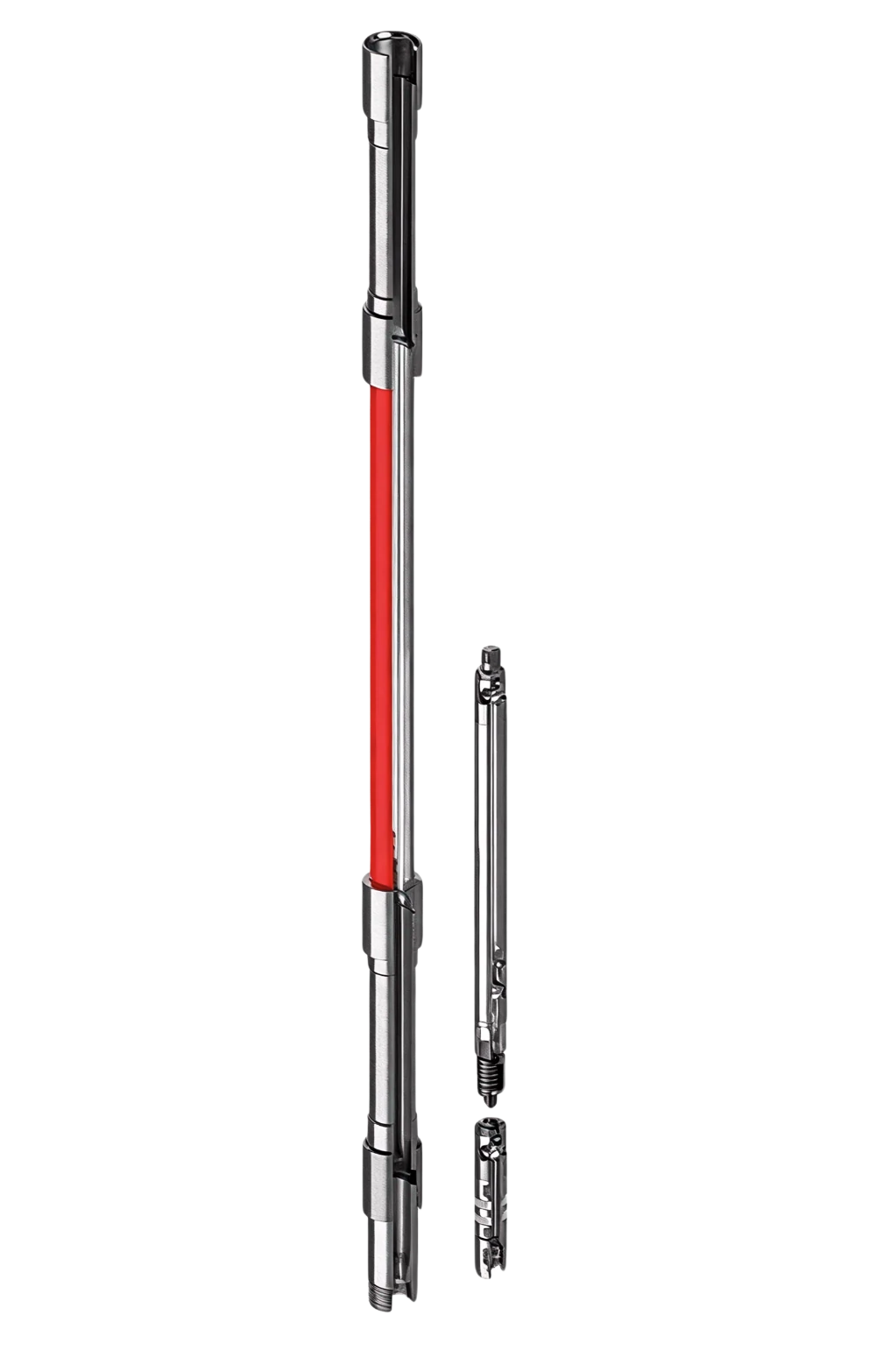

The TH sucker rod pump features a classic tubing pump design, where the pump barrel is coupled directly to the tubing string and run into the well as a unit, while the plunger reciprocates via the sucker rods. Its core components include a thick-walled, wear-resistant barrel, a hardened plunger, a standing valve, and a traveling valve. Available in non-retrievable (THD) and retrievable (THC/THM) versions, it is well-suited for complex conditions involving sand, gas, corrosion, and deep wells.
The pump barrel features a robust wall thickness, with pressure-bearing capabilities tailored for high-yield lifting in medium and shallow wells. Its material offers excellent resistance to both wear and corrosion.
The upper end of the pump body connects directly to the tubing string, ensuring a streamlined installation process without the need for additional anchoring devices, thus minimizing downhole space requirements.
The valve balls and seats provide excellent sealing performance with responsive actuation, minimizing the risk of sticking and allowing for easy maintenance and replacement. Its classic, mature design avoids overly complex components, ensuring high versatility. With a full range of bore sizes to match various conventional wells, it offers a low barrier for installation, inspection, and maintenance. As the most widely used basic tubing pump for high-yield medium and shallow wells, it delivers outstanding adaptability and practicality.
The standard thick-walled barrel is engineered for the high-pressure lifting demands of medium and shallow wells. Constructed from wear-resistant and corrosion-resistant materials, it ensures exceptional stability and durability.
The direct tubing connection allows for simple installation without additional anchoring devices, minimizing downhole space requirements. It is perfectly suited for various high-yield medium and shallow wells.
The standard valve assembly features responsive actuation and excellent sealing, minimizing the risk of sticking. This allows for easy maintenance and replacement, significantly reducing the difficulty and cost of daily operations.
Featuring a time-tested design with a full range of bore sizes, it matches the requirements of various conventional oil wells. With a low barrier for installation and maintenance, it is ideal for widespread deployment across oilfields.
Featuring a classic and mature design, this pump offers exceptional versatility. With a full range of bore sizes, it is compatible with a wide variety of high-yield medium and shallow wells.
The direct tubing connection allows for easy installation without the need for additional anchoring devices. Its compact downhole footprint and low barrier for installation and maintenance significantly reduce operational labor costs.
Equipped with a standard valve assembly featuring responsive actuation, and built with wear-resistant and corrosion-resistant materials, it ensures outstanding operational stability. This results in minimal overall operation and maintenance (O&M) costs, delivering excellent cost-efficiency.
