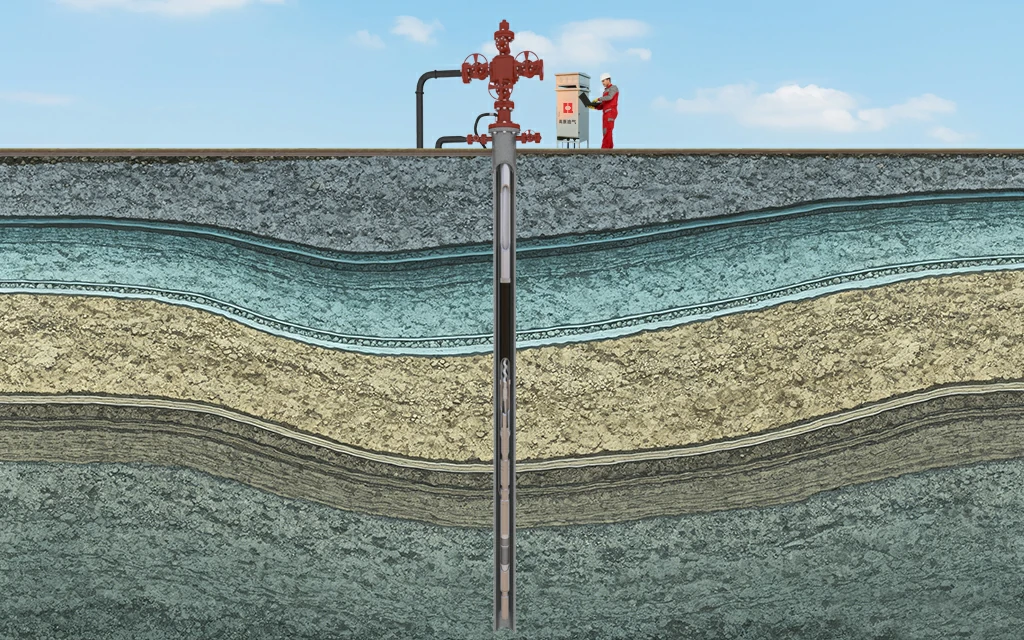

The Electric Submersible PCP system represents a highly efficient, rod-less downhole oil production solution. Utilizing advanced Permanent Magnet Synchronous Motor (PMSM) direct-drive technology, it completely eliminates the need for traditional reduction mechanisms. This streamlined architecture results in a remarkably compact structure that delivers high torque output, minimal energy consumption, and exceptionally stable, reliable operation. Operating on the positive displacement principle, the downhole PCP creates sealed chambers through the precise meshing between the rotor and stator, ensuring steady and continuous fluid lifting. When integrated with an intelligent variable frequency control system, the equipment can dynamically adjust rotational speeds in real time while providing comprehensive overload and underload protection alongside adaptive regulation of working conditions. By entirely eliminating rod and tubing wear, this system is ideally suited for heavy oil wells, high sand content environments, and operations characterized by high gas-liquid ratios. It demonstrates exceptional applicability in complex wellbore configurations, including horizontal wells, highly deviated wells, and coalbed methane water drainage and gas production projects. Ultimately, it seamlessly combines superior energy efficiency, extended service life, and robust adaptability.
The ESPCP system is a highly efficient, rod-less oil production solution engineered specifically for challenging downhole environments. By seamlessly integrating Permanent Magnet Synchronous Motor (PMSM) direct-drive technology, advanced PCP mechanics, and intelligent control systems, it delivers a remarkably compact structure alongside exceptionally reliable operation. This system exhibits outstanding performance across multiple critical metrics, including excellent sand-handling capabilities, superior wear resistance, significant energy conservation, and adaptive intelligent regulation. It is particularly optimized for complex working conditions, proving highly effective in heavy oil extraction and highly deviated wellbores where traditional lifting methods often struggle.

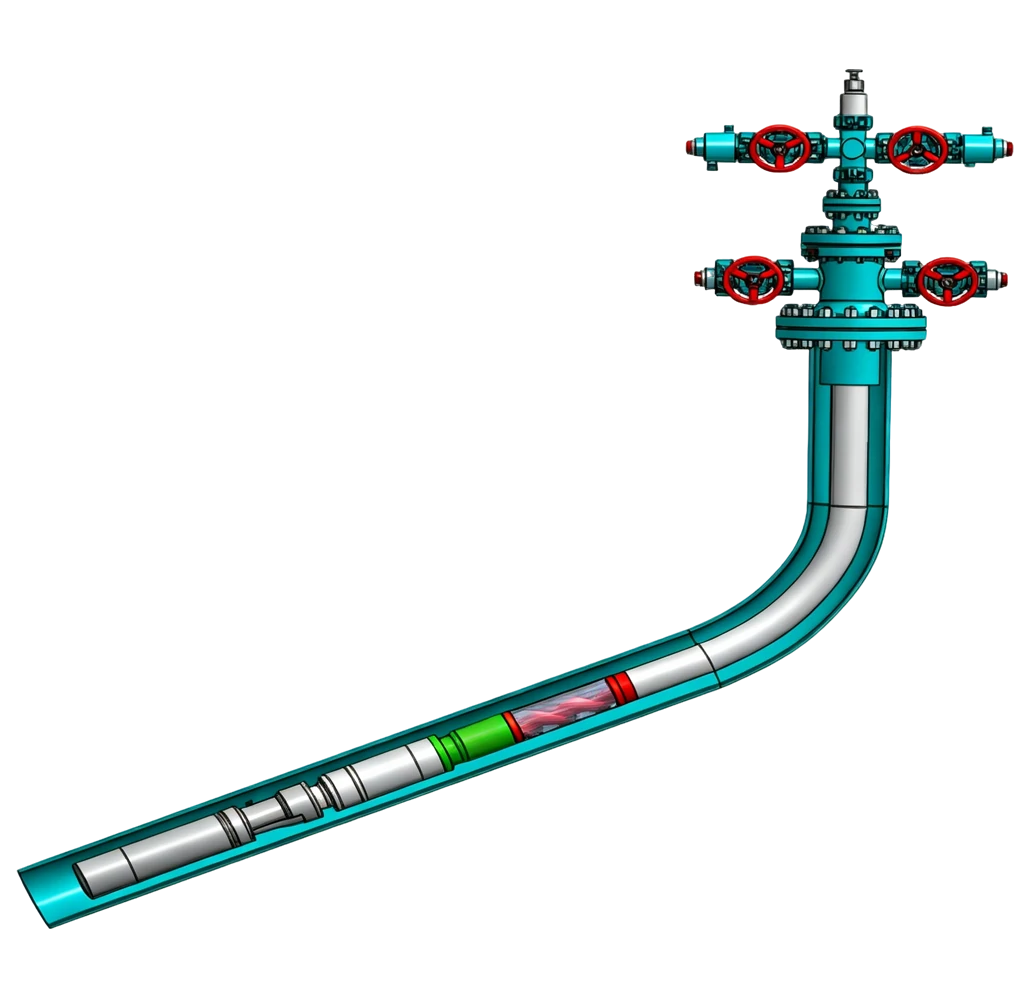

The downhole permanent magnet synchronous motor is directly connected to the PCP, without intermediate transmission components such as reducers and sucker rods. It features a compact structure, high transmission efficiency and reliable performance.
Adopting the single-screw positive displacement working principle, the rotor and stator mesh to form sealed chambers, enabling stable fluid lifting. It inherits the inherent advantages of PCPs in sand carrying, gas lock prevention, and adaptability to heavy oil media.
Equipped with dedicated protectors and high-temperature and high-pressure resistant cables, it can balance internal and external pressure and isolate the intrusion of well fluid, adapting to downhole environments with high temperature, high pressure and complex media.
Integrated downhole overall design completely eliminates eccentric wear, breakage and detachment of rods and tubes, making it especially suitable for special well types such as horizontal wells and highly deviated wells.

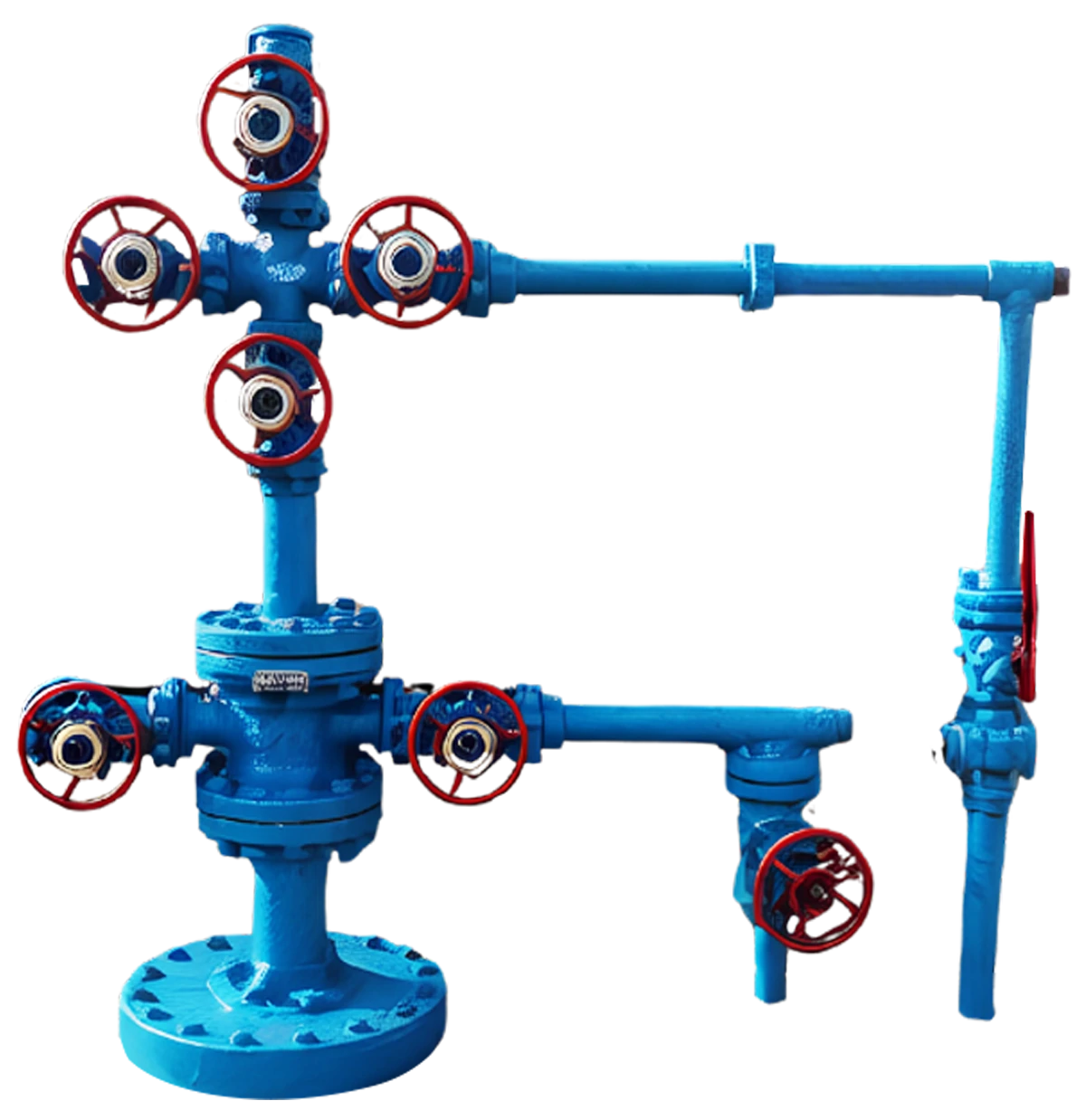

The system features integrated real-time operational monitoring, enabling it to precisely maintain a constant fluid production rate and stable downhole dynamic fluid levels. Furthermore, its advanced algorithms can intelligently diagnose and identify downhole faults before they escalate into major issues. On the surface, the equipment boasts a minimalist structural design that requires minimal floor space and operates with exceptionally low noise levels. This makes it an ideal solution for cluster well pads, urban oil wells, and other environmentally sensitive scenarios where strict spatial constraints and noise control regulations must be met.
The downhole integrated rod-less structure completely avoids the faults of rod-tube eccentric wear and breakage, of which leads to a long pump inspection cycle, and is especially suitable for horizontal wells and high-inclination wells.
Adopting a permanent magnet motor to directly drive the PCP, it has no sucker rods or reduction mechanisms, resulting in low transmission loss. Its operating efficiency is significantly higher than that of conventional oil production equipment, with remarkable energy-saving effects.
Leveraging its inherent positive displacement lifting characteristics, the PCP delivers exceptional operational resilience. The system boasts superior solids-handling capabilities, highly effective gas-lock prevention, and a minimized risk of pump stuck. Consequently, it exhibits outstanding adaptability when handling challenging well fluids, making it the ideal solution for heavy oil extraction, waxy crude production, and high-sand-content environments.
Equipped with an integrated intelligent variable frequency drive (VFD), the system enables precise real-time rotational speed adjustments alongside proactive early warning protection mechanisms. The surface equipment features a highly streamlined, compact design that requires minimal floor space and ensures ultra-low noise operation. These attributes make it exceptionally well-suited for deployment in cluster well pads, urban oil well sites, and other scenarios where strict spatial constraints and environmental noise regulations must be met.
Adopting the positive displacement lifting principle of PCP, it is sand-resistant, gas-lock resistant and heavy-oil tolerant. It can stably deliver well fluids with high sand content, high viscosity and high gas-liquid ratio, covering a wider range of working conditions.
The permanent magnet motor utilizes an advanced direct-drive architecture that completely eliminates intermediate mechanical transmission losses. By bypassing traditional gearing systems, it effectively eradicates the persistent issue of eccentric wear associated with sucker rods. This streamlined design ensures exceptionally high operating efficiency and a remarkably low failure rate, providing superior energy conservation and unparalleled operational stability for long-term deployment.
The integrated variable-frequency intelligent control system enables precise, on-demand flow rate adjustments alongside comprehensive real-time monitoring and protective mechanisms. By facilitating demand-driven production that perfectly matches reservoir capacity, this technology significantly enhances both operational safety and overall system cost-efficiency.
