The Permanent Magnet Direct Drive (PMDD) unit is a next-generation upgrade for surface PCP systems. Utilizing a low-speed, high-torque permanent magnet synchronous motor (PMSM), it directly drives the wellhead polished rod, completely eliminating the traditional "motor + belt + gearbox" transmission assembly. The system comprises a PMDD main unit, a variable-frequency drive (VFD) cabinet, wellhead connection components, and integrated sensor-based protection devices. It features smooth operation, high transmission efficiency, and stepless speed regulation. This design effectively resolves common issues associated with conventional drives, such as belt wear, gearbox oil leaks, and excessive noise, while significantly reducing maintenance frequency and energy consumption. Equipped with advanced features like overload protection, reverse braking, and intelligent monitoring, the unit is suitable for a wide range of conditions, including conventional, deviated, and heavy oil wells. It stands as a mainstream solution for energy-efficient, high-performance, and unattended PCP operations.
The PCP Permanent Magnet Direct Drive (PMDD) unit is built around a core permanent magnet synchronous motor (PMSM), eliminating the need for traditional reduction gearing. Characterized by its high integration and superior transmission efficiency, it represents a cutting-edge, energy-saving drive solution specifically engineered for the demanding conditions of oilfield production.

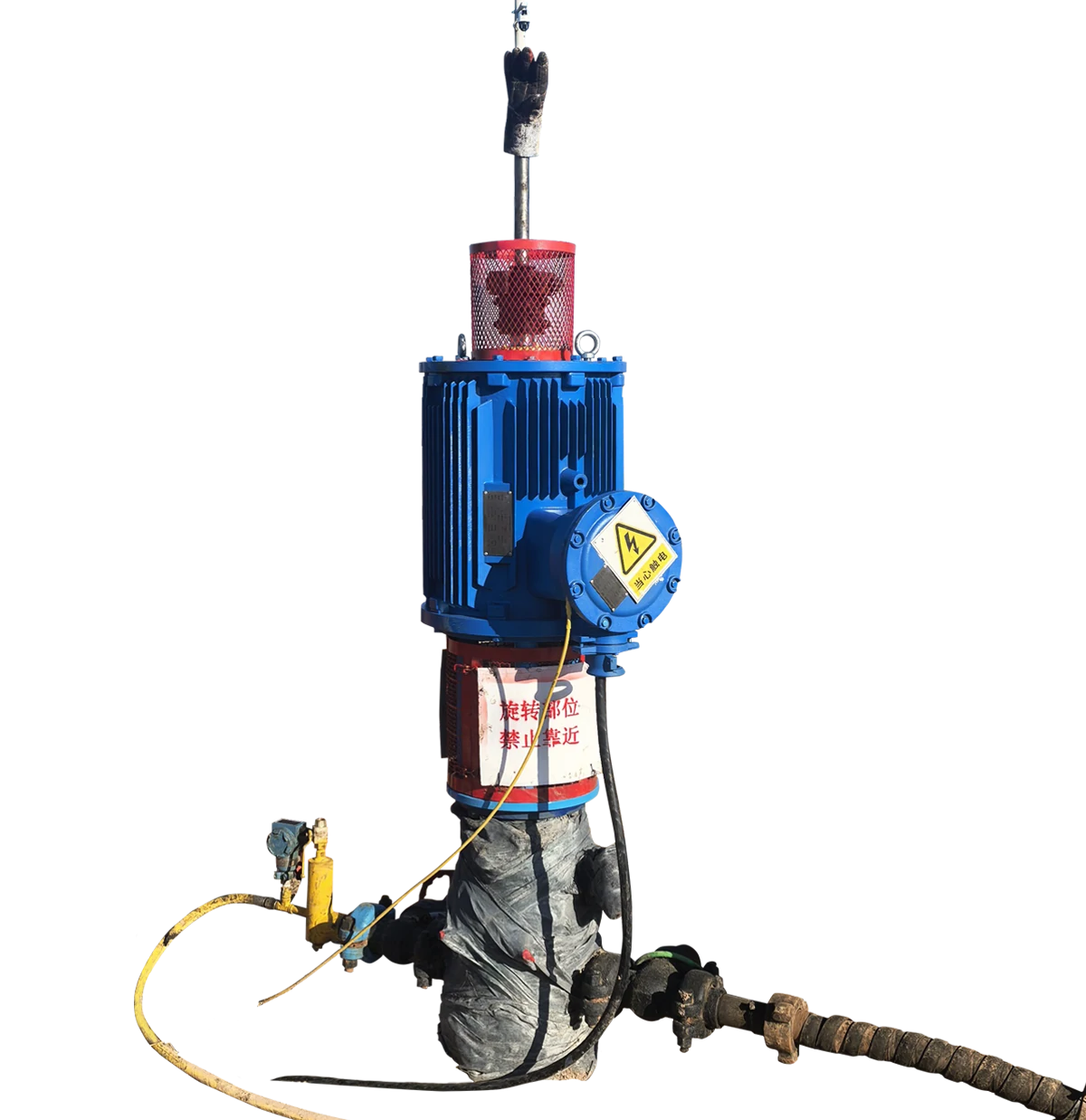

Eliminating the traditional gearbox, the permanent magnet motor directly drives the PCP via the sucker rod with zero intermediate transmission links. This results in a highly compact design with a small footprint, significantly reducing both mechanical losses and installation space requirements.
Featuring a rare-earth permanent magnet motor with a hollow shaft design, it directly delivers high torque at low speeds, eliminating the need for couplings. The motor boasts a compact axial length, minimal vibration, and low noise, resulting in a significant boost in transmission efficiency.
The unit features a one-piece integrated base that is both lightweight and highly rigid. Designed to withstand dust and rain, it is perfectly suited for outdoor oilfield operations across a wide range of temperatures.
Paired with a dedicated variable-frequency drive (VFD), the system allows for precise adjustment of both speed and torque. It comes equipped with comprehensive protection against issues like overload and phase loss, and supports remote regulation. The result is highly stable operation with outstanding energy-saving performance.
By eliminating the gearbox and coupling, the transmission chain is significantly shortened, which reduces potential mechanical failure points. This design results in lower vibration and noise, while drastically cutting down on both equipment failure rates and maintenance workload.
Powered by an advanced variable-frequency control system, the unit delivers wide-range stepless speed regulation. This allows for flexible adjustment of displacement to match specific well conditions—such as variations in liquid production, gas, and sand content—thereby maximizing the lifting system's adaptability and ensuring consistent production stability.
By eliminating intermediate transmission losses associated with reduction gearboxes, the highly efficient permanent magnet motor delivers an exceptional power factor. This results in remarkable energy savings compared to conventional drive systems, offering outstanding economic benefits over the long term.
Featuring a compact structure with a small footprint, the unit adopts an integrated base design that simplifies on-site commissioning and shortens the construction period. It is perfectly tailored to meet the standardized and modular deployment requirements of modern oilfields.
With years of expertise in the R&D and manufacturing of permanent magnet direct-drive devices for PCPs, the company boasts comprehensive capabilities in design, testing, and large-scale production, delivering superior product quality.
Powered by a variable frequency control system for stepless speed regulation, the device adjusts speed and displacement in real time based on fluctuations in liquid production, sand/gas content, and dynamic fluid levels. It adapts seamlessly to complex conditions—including low-yield, heavy oil, and high-sand wells—ensuring stable lifting and maximizing recovery efficiency.
We have established a robust after-sales technical service network covering core oilfield regions. Throughout the equipment's lifecycle, our professional team provides rapid-response maintenance to ensure long-term, efficient operation.
