Delivering robust performance with a rated pressure of 50 MPa and a flow rate of 1.5 m³/min, our proprietary electric pressure-driven injection unit sets a new standard for oilfield operations. It consolidates high-pressure pumping, VFD technology, smart controls, and advanced safety mechanisms into a single compact footprint. Perfectly suited for pressure maintenance, well fracturing, and high-pressure liquid transfer, this unit ensures uninterrupted, reliable service. It serves as an excellent modular addition to full-scale fracturing fleets. By replacing conventional diesel systems, it offers significant cost savings, a greener operational profile, and exceptional ROI.

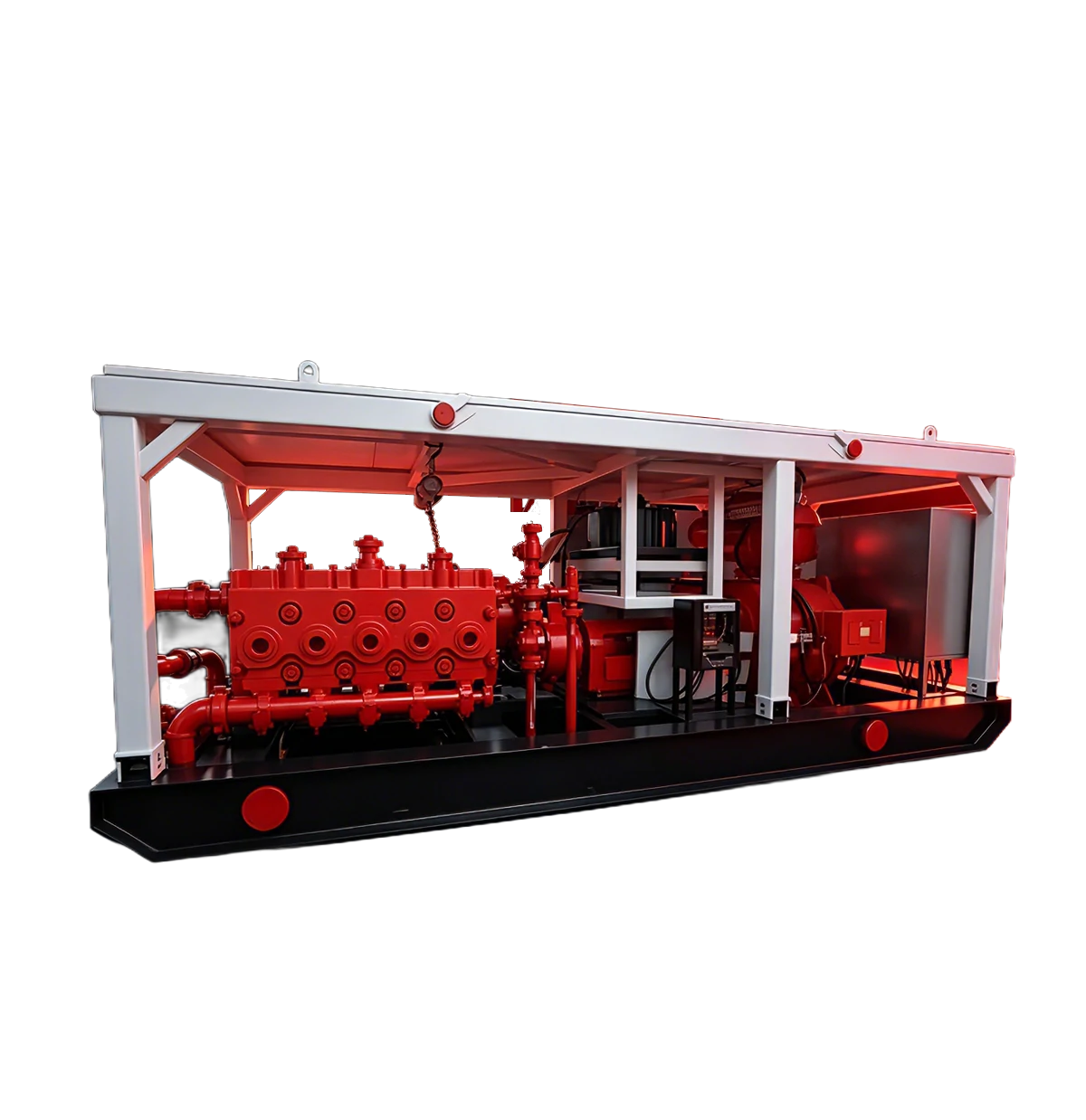

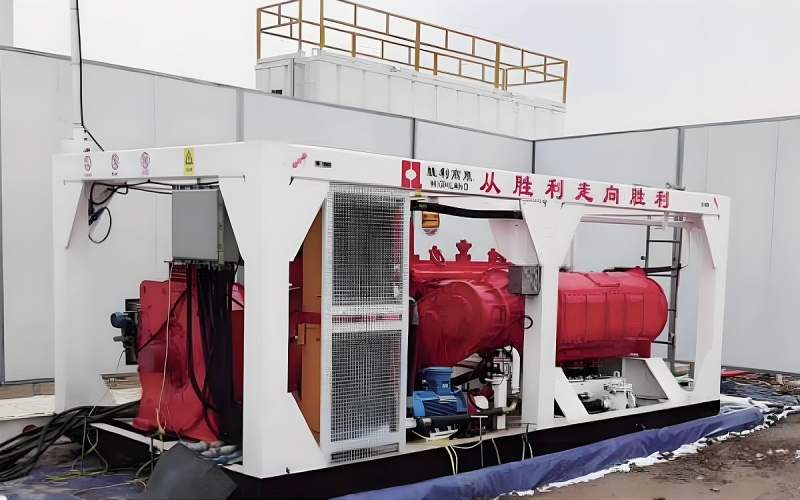

Designed for the rigors of deep-well extraction, our modular, grid-powered electric pressure-driven injection unit delivers uncompromising high-pressure, large-flow performance. Its compact, skid-mounted design, comprising a pump skid, E-house, water tank, and charge pump skid, ensures effortless mobility and deployment.

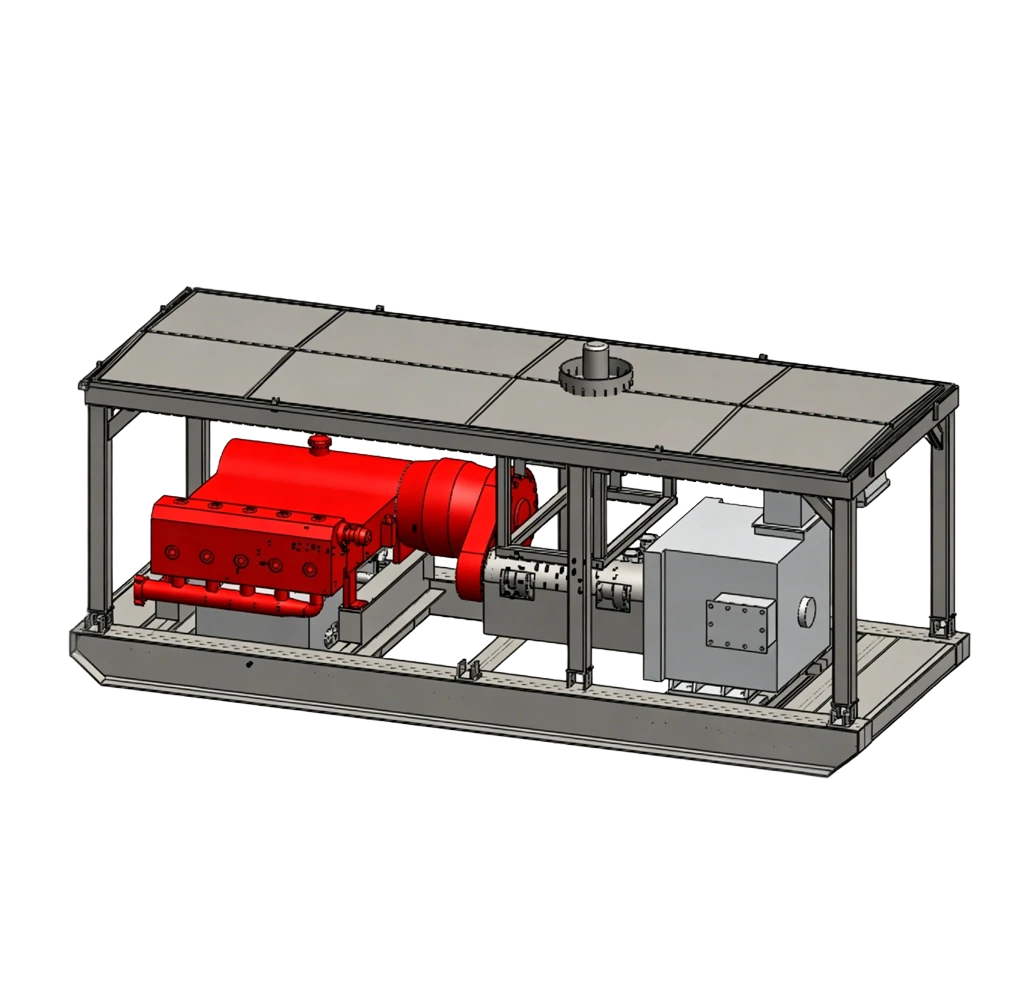

Driven by a 1600 kW VFD motor via a universal shaft, our φ101.6 mm five-cylinder plunger pump (10-inch stroke) combines forced power-end lubrication with automated fluid-end greasing for maximum efficiency and reliability.
Dual-layer protection integrates electrical overpressure safeguards with mechanical safety valves, featuring automatic load reduction to protect critical infrastructure.
A state-of-the-art PLC and touchscreen interface enables flexible local/remote management and multi-unit synchronized networking.
Segregated high/low-pressure manifolds feature a robust 105 MPa-rated high-pressure line for quick, leak-proof assembly.
With full anti-corrosion shielding, enclosed moving parts, and low-noise engineering, this unit is built to withstand prolonged, heavy-duty field operations.
Compatible with 6kV and 10kV power grids, this unit operates with zero exhaust emissions, low noise, and minimal energy consumption. Its long-term operating costs are significantly lower than those of traditional diesel-driven units.
Delivers a continuous working pressure of up to 50 MPa and a displacement of up to 1500 L/min. Equipped with a five-cylinder plunger pump for stable output, it fully meets the rigorous demands of deep-well high-pressure water injection.
Features dual protection through electric overpressure control interlocked with a mechanical safety valve. Automatic load reduction and pressure relief systems ensure highly secure and safe operations.
Equipped with an advanced PLC and touchscreen interface supporting both local and remote control. Capable of multi-unit network collaboration, enabling seamless single-person operation.
Features independent skid-mounted structures for the pump unit, E-house, water tank, and charge pump. This modular configuration facilitates rapid hoisting, transportation, and on-site installation.
Engineered with forced pressure lubrication at the power end and automatic greasing at the fluid end, complemented by automated oil temperature and pressure control systems. These advanced features effectively prolong the service life of core components.
Our dedicated service team provides standardized preventive maintenance with clearly defined wear-part replacement cycles. The result is a significantly lower failure rate and minimized downtime, ensuring highly stable operations.
